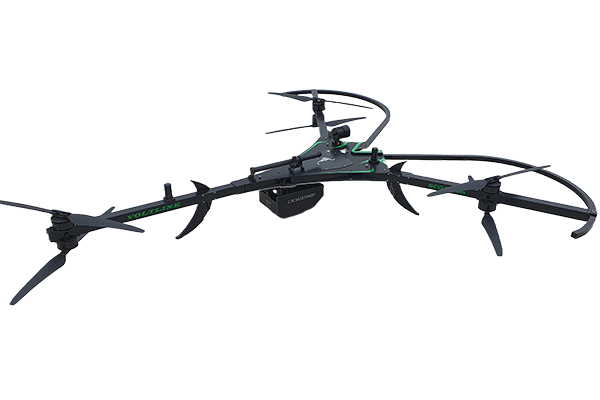

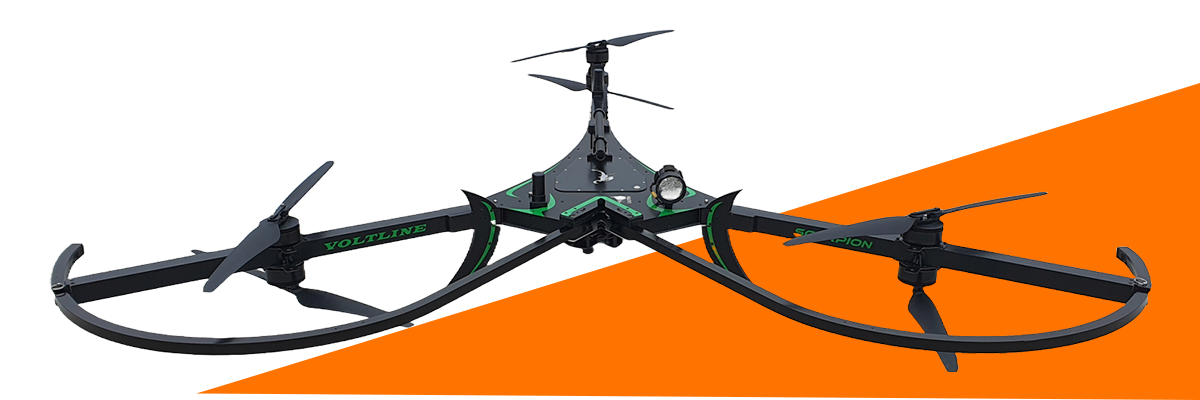

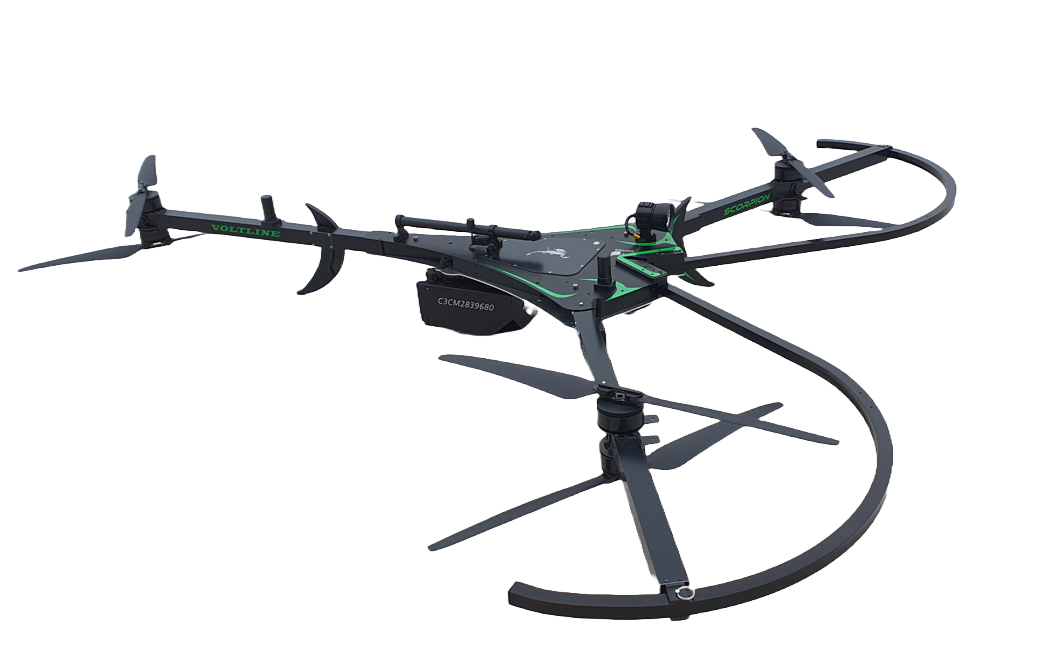

    SCORPION Drone Image
    This is
    SCORPION

    북한이 최근 대량으로 오물풍선을 날려 보내고 있습니다.

    대남 오물풍선 살포는 심리전과 복합 위협으로 해석되며, 남북 관계의 긴장을 고조시키는 요인으로 작용하고 있습니다.

    이 풍선들은 일반 폐기물부터 비료, 인간 유전자까지 포함하고 있어 건강과 환경에 심각한 위험을 초래할 수 있습니다. 또한, 독극물이나 화학무기 사용에 대한 잠재적 위협 요소로도 지목되고 있습니다.

    볼트라인은 이러한 위협에 대응하기 위해 오물풍선 포획 드론 SCORPION을 개발했습니다. SCORPION은 공중에서 오물풍선을 신속하고 안전하게 포획하도록 설계되어 민간 피해 없이 효율적으로 대처할 수 있으며 접경 지역, 공항,국가 주요 시설물 및 수도권 일대에 배치하여 이 위협을 최소화하는 데 중요한 역할을 수행할 수 있습니다. North Korea has recently been sending a large number of filth balloons.

    The spraying of filth balloons toward South Korea is interpreted as psychological warfare and a complex threat, escalating tension between the two Koreas.

    These balloons may contain general waste, fertilizers, or even biological materials such as human genes, posing significant health and environmental hazards. Some concerns have also been raised about the potential use of toxic or chemical substances.

    To counter these threats, Boltline has developed the SCORPION, a drone designed to safely and efficiently capture filth balloons in flight. With its rapid response capability, it helps prevent civilian harm and can be deployed at the border, major infrastructure facilities, airports, and metropolitan areas.

    Spec

    SCORPION Spec 1
    Spec details may be subject to change for performance enhancement.
    Name SCORPION
    Use Filth balloon capture drone
    Length 2132 mm
    Width 1894 mm
    Height 236 mm
    Flight Time 30 minutes
    Range 27 km
    Wind Resistance Max wind speed 12 m/s
    Max Altitude 3000 m (soft limit)
    Payload Max 10 kg
    Rope Cutting 3–10 pi (Nion rope)
    Cutting Method AI Tracking / Automatic cutting
    Operating Temp -35°C to 50°C
    SCORPION is engineered for mission-critical environments with high reliability.

    View details

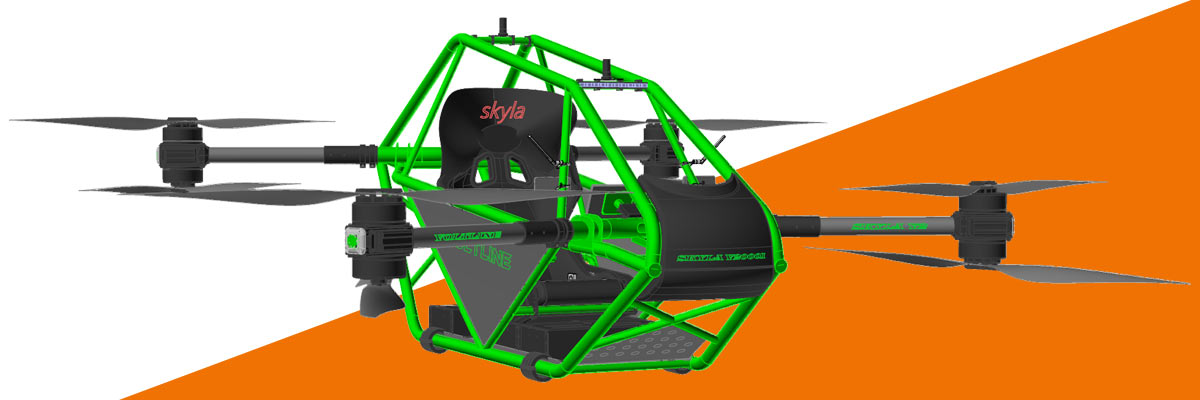

    Part1 body

    The Skyla has a safe aluminum and carbon body that protects the pilot and keeps the flight going even if one motor stops. Ensure pilot safety in case of emergency.

    Part2 FC

    The self-developed Flight Controller makes flying very safe and convenient. It can be pilot controlled, and automatic flight is possible. It allows you to turn into a pilot in a few minutes.

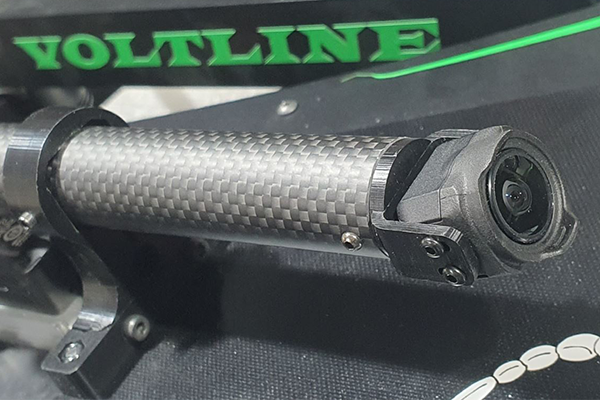

    Part3 카메라

    • 기능: 목표물 추적 + 로프 감지 + 정밀 정렬 + 절단 여부 확인
    • 특징: 로프와의 정밀한 정렬을 수행하고 실시간으로 데이터를 지상GCS(Ground Control System)로 송출하여 안정적인 도킹을 할 수 있는 비행 제어 및 조종 지원

    Part4 RTK

    RTK GPS can accurately locate up to centimeters.RTK GPS allows you to fly safely and conveniently even where there are many high-voltage lines or reinforcement structures.

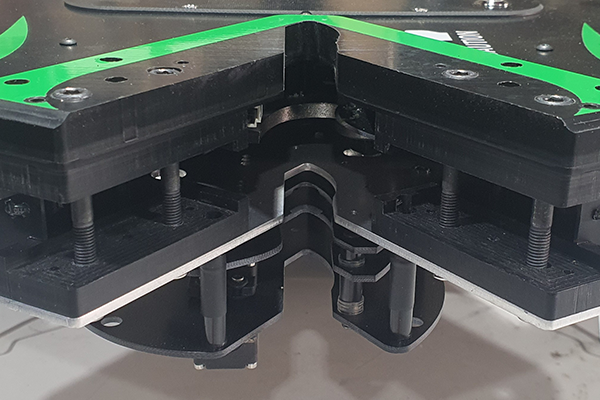

    Part5 로프 절단 시스템

    • 컷팅 장치(Cutting Mechanism): 로프를 정해진 위치에서 절단하는 시스템.
    • 절단 방식: 기계식 블레이드(Guillotine Cutter) / 전동식 커터(Motorized Cutter) / 그라인더 연삭기(Grinding Wheel Cutter).
    • 컷팅 블레이드 가이드(Cutting Blade Guide): 절단 시 로프가 정확한 위치에 있도록 안내하는 가이드 구조
